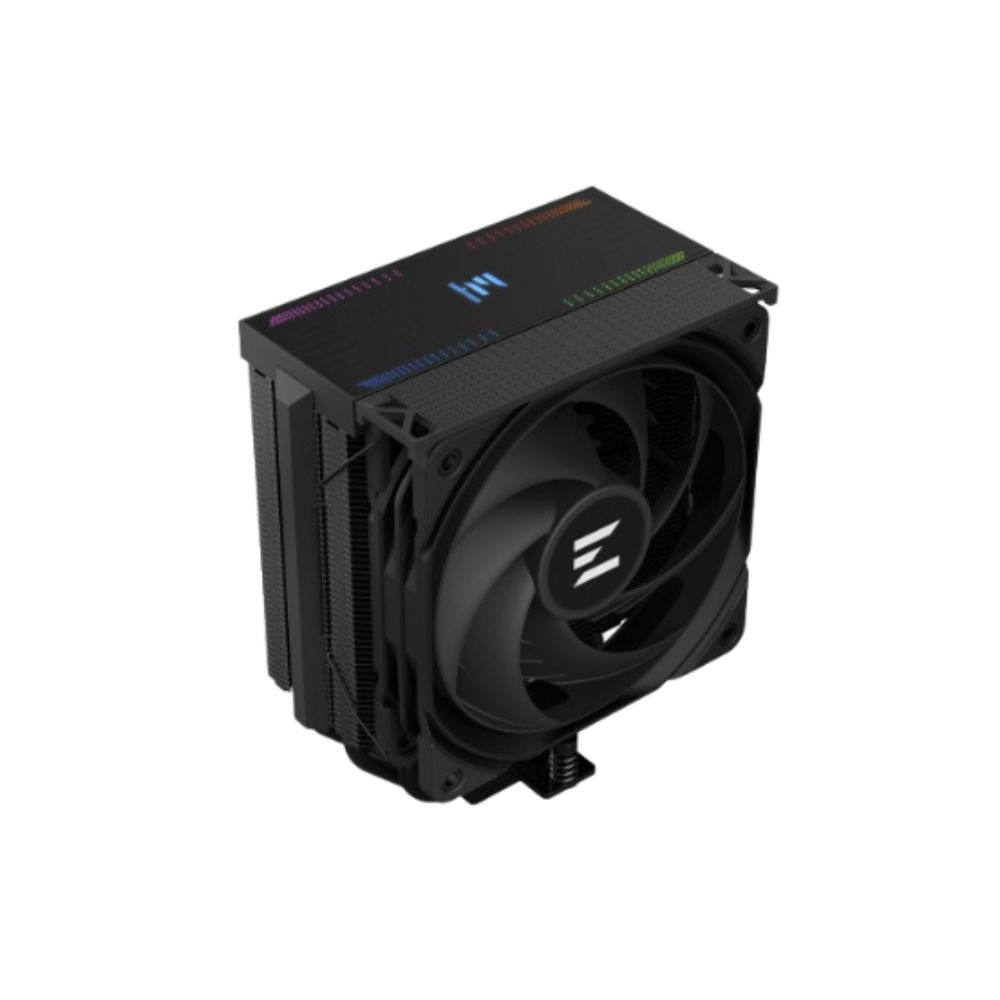

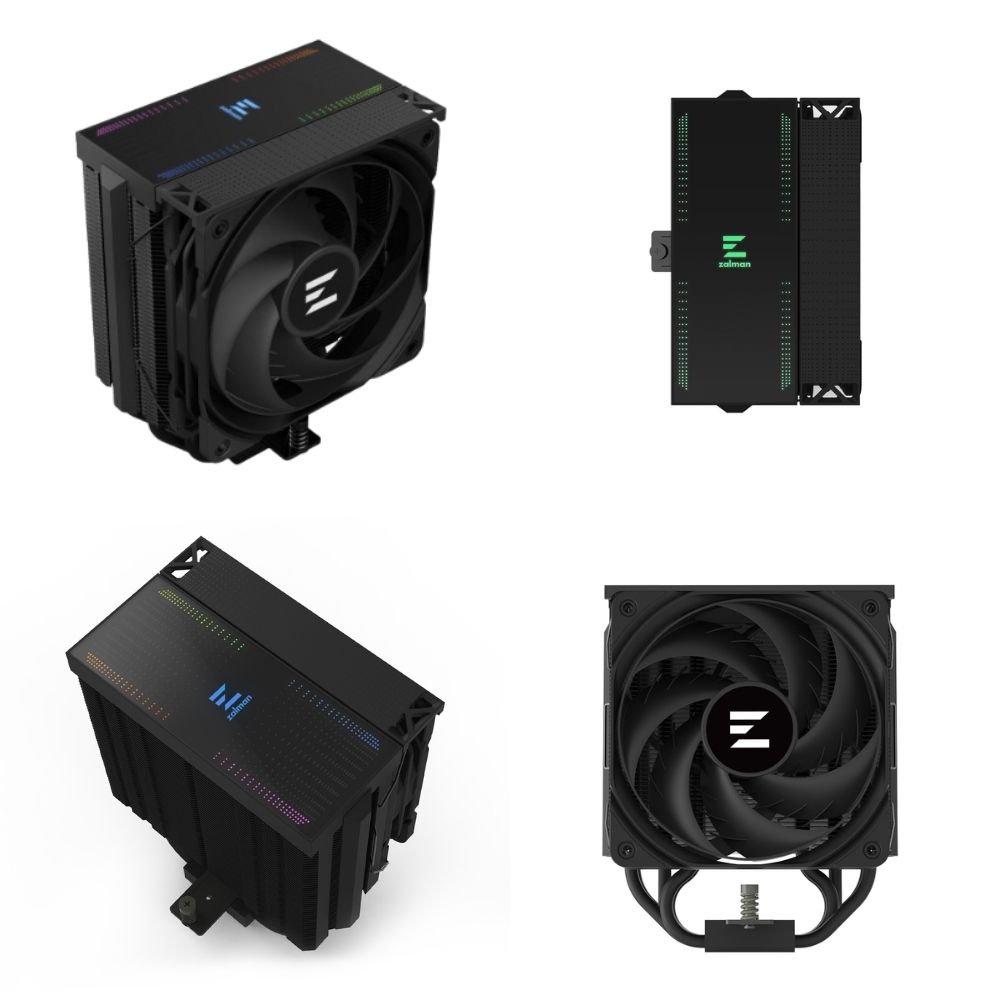

CNPS13X Air Cooling
Dimensions    135 x 79 x 159(H)mm
Materials    Pure Copper, Pure Aluminum, ABS
Weight    810g
Heat Dissipation Area    6,717?
Heat Pipe    5
TDP    240W
Fan Dimensions    120 x 120 x 26(H)mm
Fan Bearing Type    Hydro Bearing
Fan Speed    600~2,000RPM±10%
Max. Fan Noise Level    29.7dB(A)±10%
Max. Fan Air Flow    69.12CFM±10%
Max. Static Pressure    2.01mmH2O±10%
Fan Life Span    40,000hours
Fan Connector Type    4-Pin
Fan Control Method    PWM Control
Rated Voltage    12V DC
Rated Current    0.28A
Power Consumption    3.36W
Socket Compatibility    Intel : LGA1700 / 1200 / 115X
AMD : AM5 / AM4

---------------------------------------------------------------------------

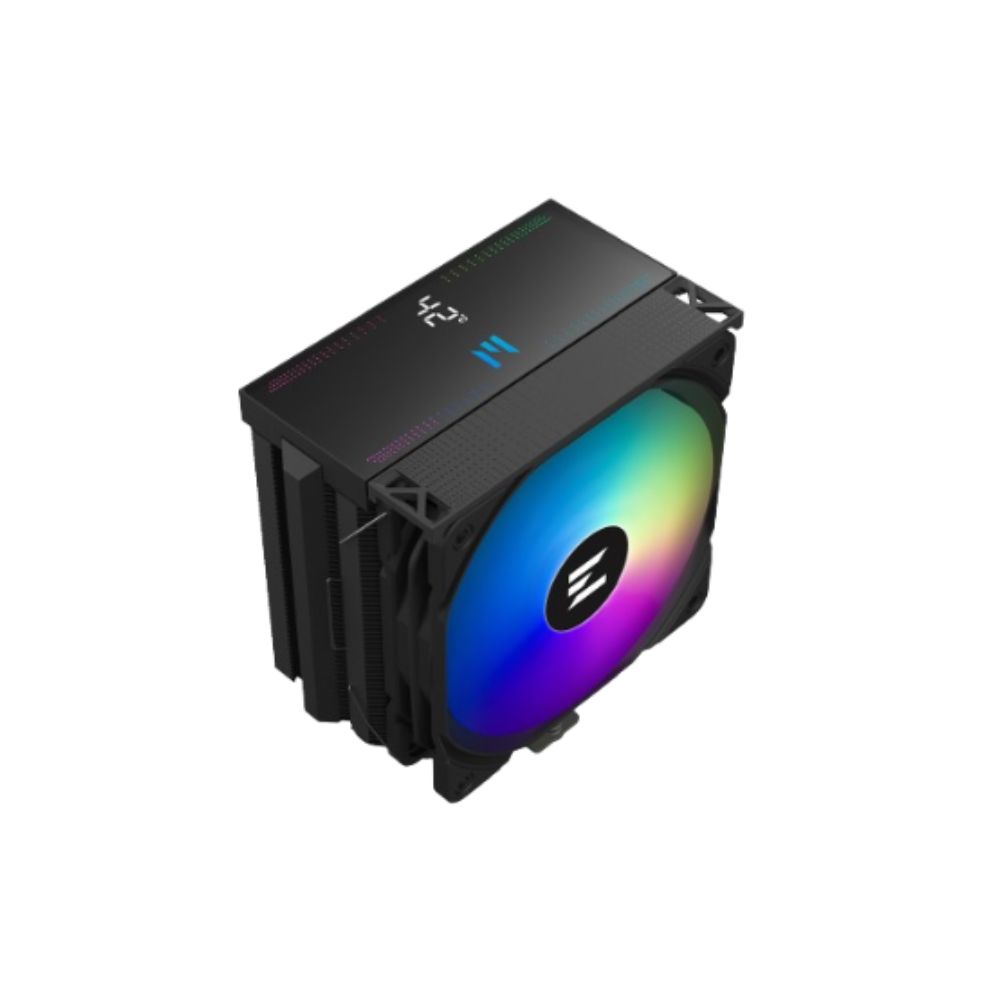

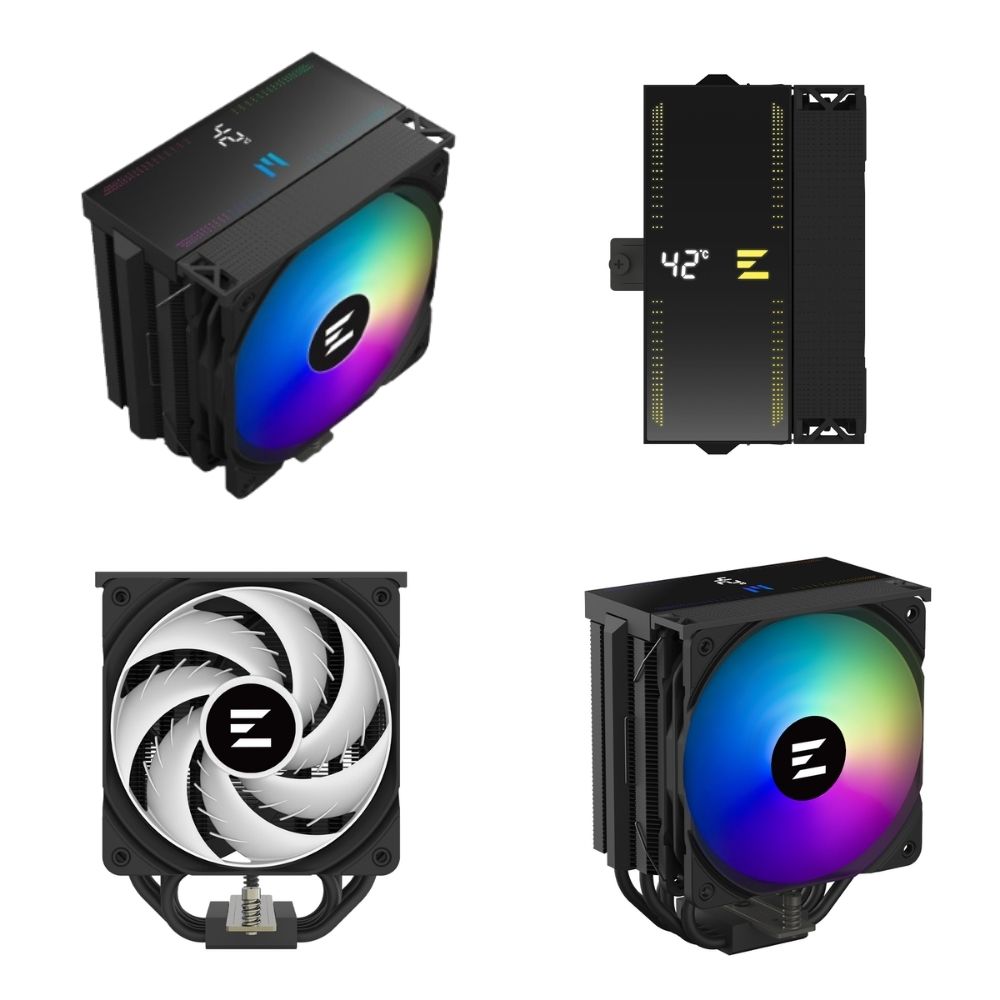

CNPS13XDS Digital Air Cooling
Dimensions    135 x 79 x 159(H)mm
Materials    Pure Copper, Pure Aluminum, ABS
Weight    810g
Heat Dissipation Area    6,717?
Heat Pipe    5
TDP    240W
Fan Dimensions    120 x 120 x 26(H)mm
Fan Bearing Type    Hydro Bearing
Fan Speed    600~2,000RPM±10%
Max. Fan Noise Level    29.7dB(A)±10%
Max. Fan Air Flow    69.12CFM±10%
Max. Static Pressure    2.01mmH2O±10%
Fan Life Span    40,000hours
Fan Connector Type    4-Pin
Fan Control Method    PWM Control
Rated Voltage    12V DC(LED: 5V)
Rated Current    0.28A(LED: 0.36A)
Power Consumption    3.36W(LED : 1.8W)
Socket Compatibility    Intel : LGA1700 / 1200 / 115X
AMD : AM5 / AM4
