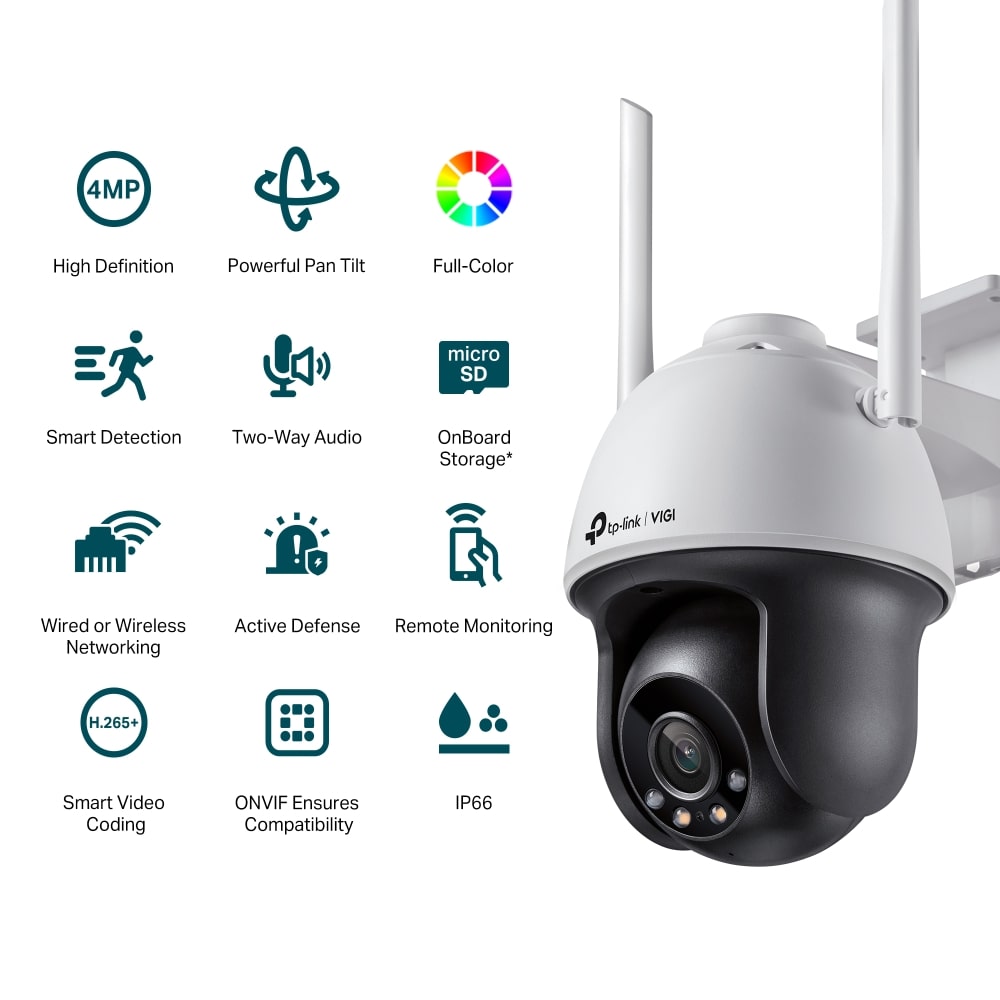

VIGI C540-W VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera

4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

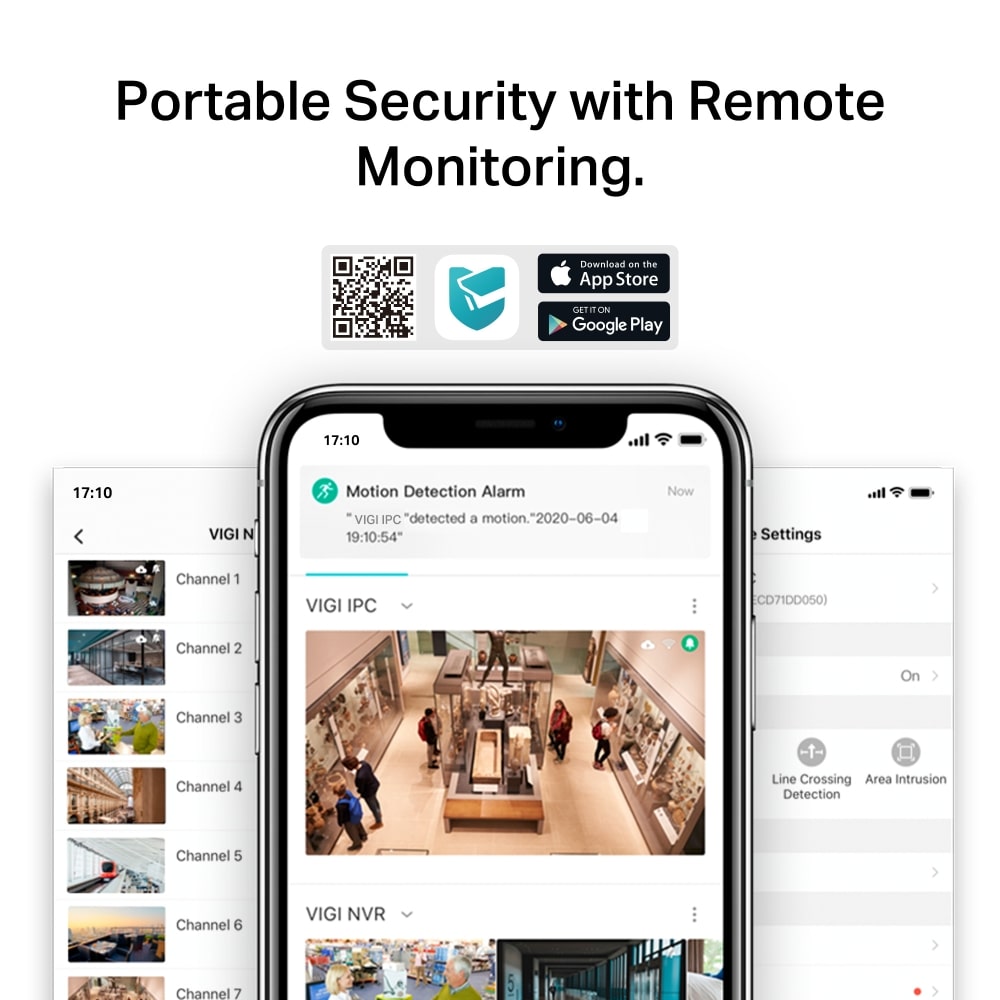

VIGI App: Manage your security from the palm of your hand with the VIGI app.

Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection. Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Motion Detection - Get instant notifications when your camera detects motion.
Area Intrusion - Set customized activity zones around key areas for more focused monitoring.
Line-Crossing - Set a boundary and receive an alert anytime a person crosses it from either or both directions.
Camera Tampering - Receive alerts when someone obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.

Never miss a detail.
SmartVid-Smart Video Enhancement

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage
Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as on-board storage with an SD card slot.

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

One system. Full security.
Run your business with peace of mind. The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

CAMERA

Image Sensor
1/3” Progressive Scan CMOS

Lens
Fixed focal lens (4 mm)

Day/Night Switch
Unified/ Scheduled/ Auto

Digital Noise Reduction
3D DNR

WDR
DWDR

Weatherproof Rating
IP66

IR Working Distance
30m

Pan/Tilt Range
Pan: 0° to 350°, Tilt: 0° to 120°

Shutter Speed
1/3 to 1/10000 s

Aperture
4 mm: F1.6

Lens Mount
M12

Illumination Distance
30 m

Viewing Angle
(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Digital Zoom
Yes

Slow Shutter
Yes

Minimum Illumination
0 lux with IR/white Light

Day/Night Mechanism
IR Cut Filter

NETWORK

Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Wireless Rate
11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)

Wireless Security
WPA/WPA2-PSK

ONVIF
Yes

API
ONVIF

Simultaneous Live View
3 Main Streams & 3 Sub-Streams

Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above

Cloud
Yes

Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Frequency
2.4 GHz

GENERAL

Operating Temperature
-30–60 °C

Storage Temperature
-40–60 °C

Operating Humidity
95% or Less (Non-Condensing)

Storage Humidity
95% or Less (Non-Condensing)

Weight
195g

Package Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories (Screws, Drywall Anchors, Hex Key)

Dimensions( H X W X D )
120 × 172 × 198 mm

Material
Plastic

General Features
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Requirements
12V DC ± 5%, 5.5mm Coaxial Power Plug

Net Weight
0.62 Kg

Gross Weight
1.21 Kg

Power Consumption
12V DC: Max 15.5W

Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug

Antenna
Quantity: 2
Type: 2.4GHz Welded Dipole Omni-Directional Antenna
Gain: 2.0dBi

Protection
IP66

Product Dimensions (L x W x H)
120 × 172 × 198 mm (excluding antennas)

Certifications
CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

INTERFACES

Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port

Audio Input
Built-in Microphone

Audio Output
Built-in Speaker

Alarm
N/A

Reset Button
Yes

Power
DC Power Port

Button
Reset Button

Slot
Micro SD card

On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Microphone
Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker
Yes

Audio
N/A

ALARM AND EVENT MANAGEMENT

Smart Event
Area Intrusion Detection, Line-Crossing Detection, People Detection

Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Linkage Method
N/A

Output Notification
Message Push

WIRELESS

Standards
IEEE 802.11b/g/n

WiFi Channels
UN: 1-13
US: 1-11

Frequency
2.4 GHz

Wireless Transmit Power
High

Auto Wireless Channel
N/A

Wireless Statistics
N/A

Throughput Mornitor
N/A

Radio Bandwidth
Auto: N/A
20M: Yes
40M: Yes

Wireless Rate
11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)

Wireless Security
WPA/WPA2-PSK

Wireless Mode
AP, AP Client

VIDEO/IMAGE

Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

Frame Rate & Resolutions
Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240

Video Streaming
Main Stream
Sub-Stream

Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement
BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET

Smart Event
Area Intrusion Detection, Line-Crossing Detection, Human Detection

Basic Event
Motion Detection, Camera Tampering Detection, Exception ( illegal login)

Linkage Method
Trigger Notification: ONVIF, HTTPS

Region of Interest
1 Region

AUDIO

Audio Communication
Two-Way Audio

Audio Input
Yes

Audio Output
Yes

Audio Compression
Yes

Audio Sampling Rate
8KHz

Environment Noise Filtering
Yes

Audio Bit Rate
64 Kbps(G.711 alaw)

PTZ
Pan/tilt Range
Pan: 0° to 350°, Tilt: 0° to 120°

Pan/tilt Speed
Pan Speed:Configurable from 1° to 55°/s; Preset Speed: 55°/s
Tilt Speed:Configurable from 1° to 40°/s, Preset Speed 40°/s

Manual Control Speed
Configurable from 8° to 35°/s

Presets
300

Patrol Scan
8 patrols, up to 8 presets for each patrol

Power-off Memory
Yes; Auto restore to previous PTZ and lens status after power failure

Park Action
Yes; Preset; Patrol Scan

3D Positioning
Yes

ILLUMINATOR

IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm

White LED
Quantity: 2
Range: 30m

Illuminator On/Off Control
Auto/Scheduled/Always on/Always off

LENS

Type
Fixed Focal Lens

Focal Length
4 mm

Aperture
F1.6

FOV
4mm:Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount
M12

DORI Distance
4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

ANGLE ADJUSTMENT (MANUAL)

Range
Pan: 0° to 348°
Tilt: 0° to 120°

VIDEO

Max. Resolution
2560 X 1440

Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240

Bit Rate Control
CBR, VBR

Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

H.264 Type
Main Profile/High Profile

H.264+
Main Stream Supported

H.265 Type
Main Profile

H.265+
Main Stream Supported

Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software

Image Enhancement
BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range
DWDR

SNR
≥ 52 dB

Image Parameters Switch
Yes

Privacy Mask
Up to 4 Masks

ROI
1 Region

OSD Setting
Yes
