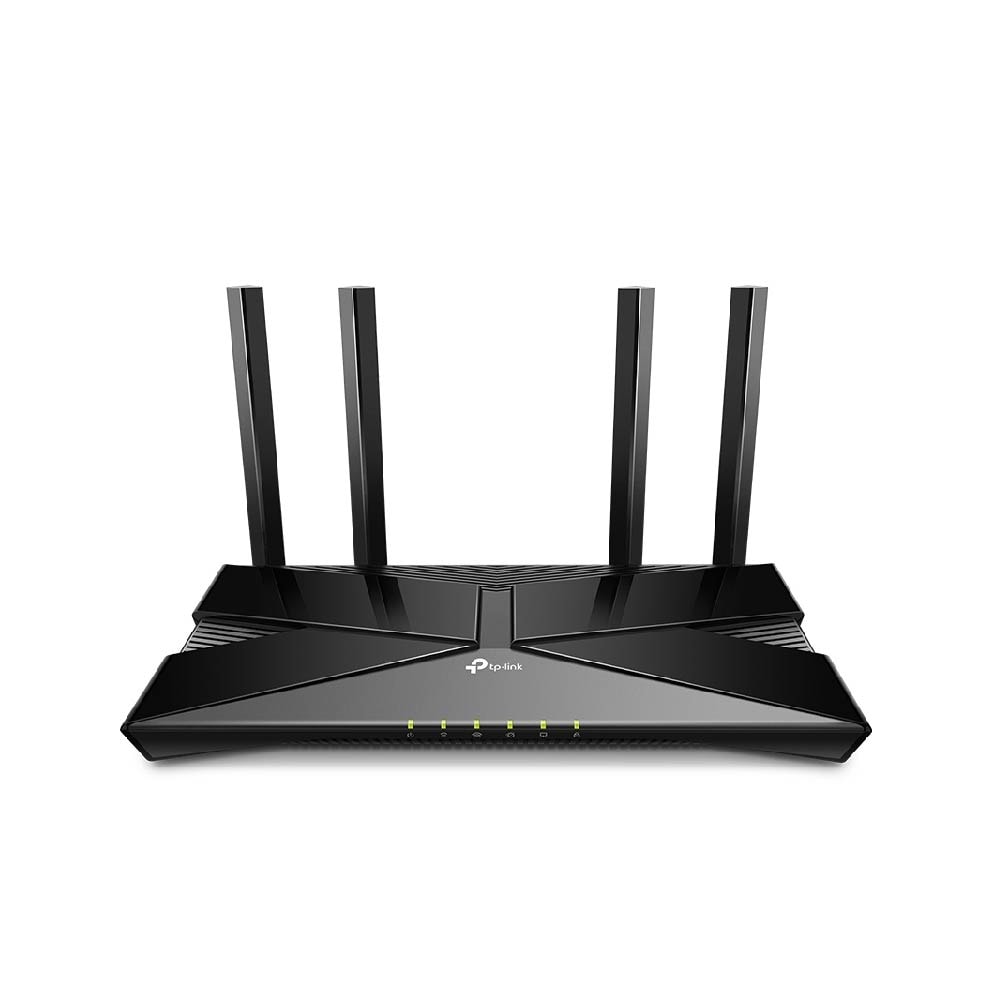

TP-Link Archer AX10 Dual-Band Wi-Fi 6 Router

SECURITY

Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server
OpenVPN
PPTP

WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

WIRELESS

Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds
AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)

WiFi Range
2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth

Working Modes
Router Mode
Access Point Mode

HARDWARE

Processor
1.5 GHz Triple-Core CPU

Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports

Buttons
WPS/Wi-Fi Button
Power On/Off Button
Reset Button

Power
12 V - 1 A

SOFTWARE

Protocols
IPv4
IPv6

EasyMesh
Mesh networking creates smooth, fast, stable roaming. Archer AX10 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

Parental Controls
URL Filtering
Time Controls

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
QoS by Device

Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List
Server

DDNS
TP-Link
NO-IP
DynDNS

Management
Tether App
Webpage

OTHER

System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)

Certifications
FCC, CE, RoHS

Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power
CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity
5 GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm
11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm
11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm
11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm
11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-91dBm
11a 54Mbps:-74dBm
11n HT20_MCS0:-90dBm
11n HT20_MCS7:-73dBm
11n HT40_MCS0:-88dBm
11n HT40_MCS7:-70dBm

PHYSICAL

Dimensions (W×D×H)
10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)

Package Contents
Wi-Fi Router Archer AX10
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
