Net Weight1504 g

Radiator Dimensions282×120×27 mm

Radiator MaterialAluminum

Tube length410 mm

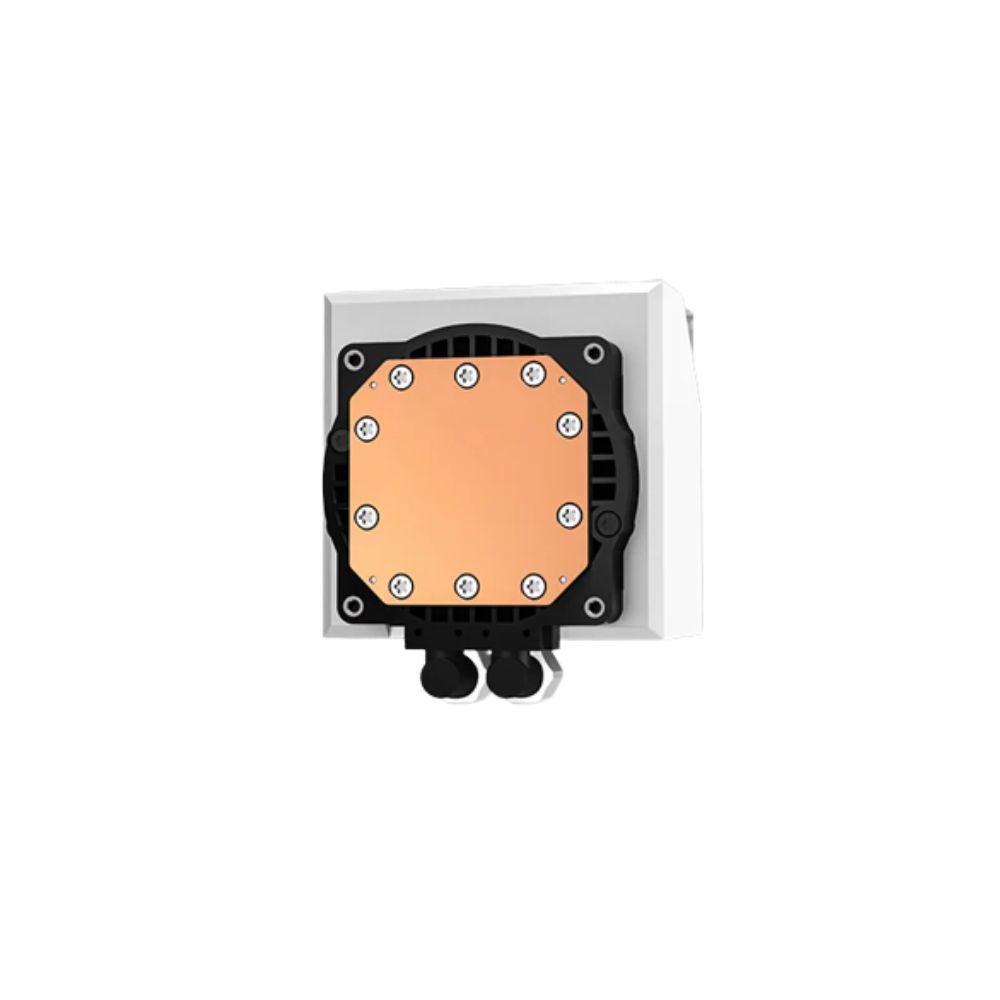

Pump Dimensions94×80×68 mm

Pump Speed3100 RPM±10%

Pump Noise19 dB(A)

Pump Connector3-pin

Pump Rated Voltage12 VDC

Pump Rated Current0.38 A

Pump Power Consumption4.56 W

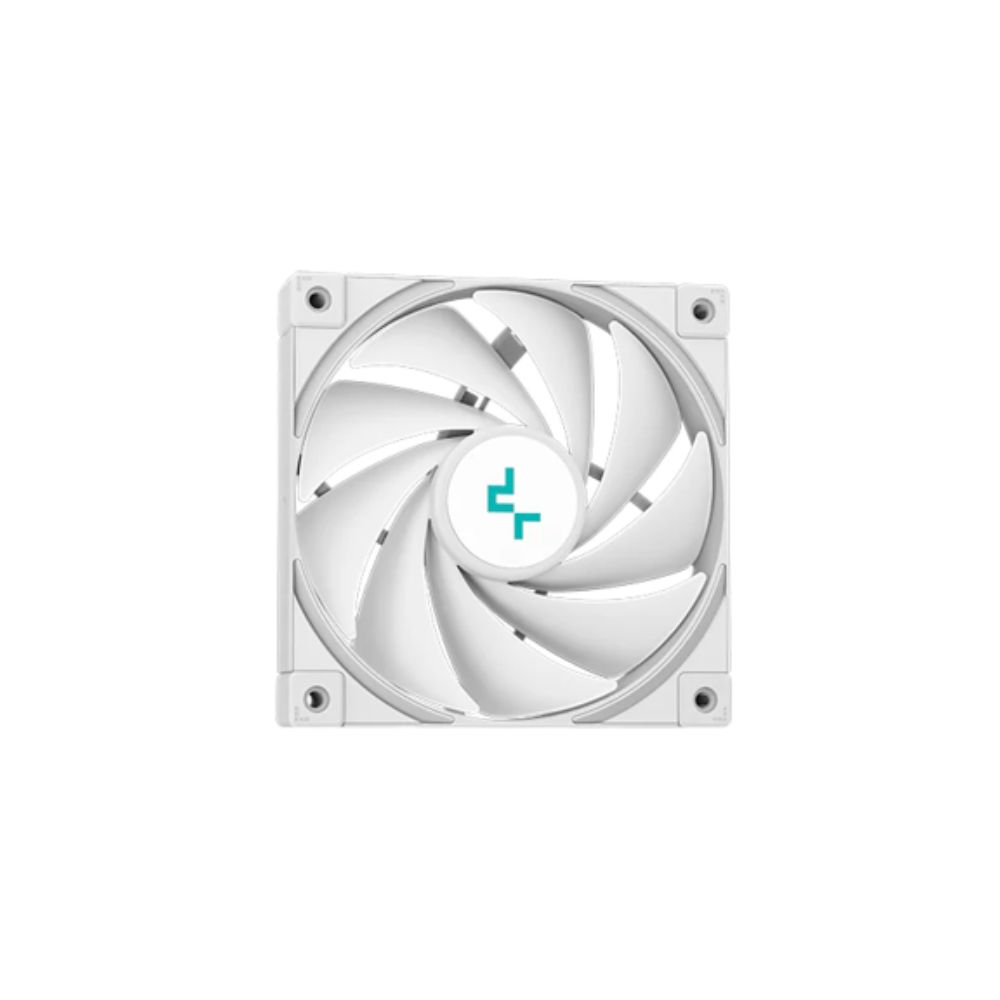

Fan Dimensions120×120×25 mm

Fan Speed500~2250 RPM±10%

Fan Airflow85.85 CFM

Fan Air Pressure3.27 mmAq

Fan Noise32.9 dB(A)

Fan Speed (with LSP)500~1600 RPM±10%

Fan Airflow (with LSP)60.85 CFM

Fan Air Pressure (with LSP)1.65 mmAq

Fan Noise (with LSP)28.2 dB(A)

Fan Connector4-pin PWM

Bearing TypeFluid Dynamic Bearing

Fan Rated Voltage12 VDC

Fan Rated Current0.22 A

Fan Power Consumption2.64 W

LED TypeAddressable RGB LED

LED Connector3-pin(+5V-D-G)

LED Rated Voltage5 VDC

LED Power Consumption3.15 W

EAN6933412728115P/NR-LT520-WHAMNF-G-1
