Specification

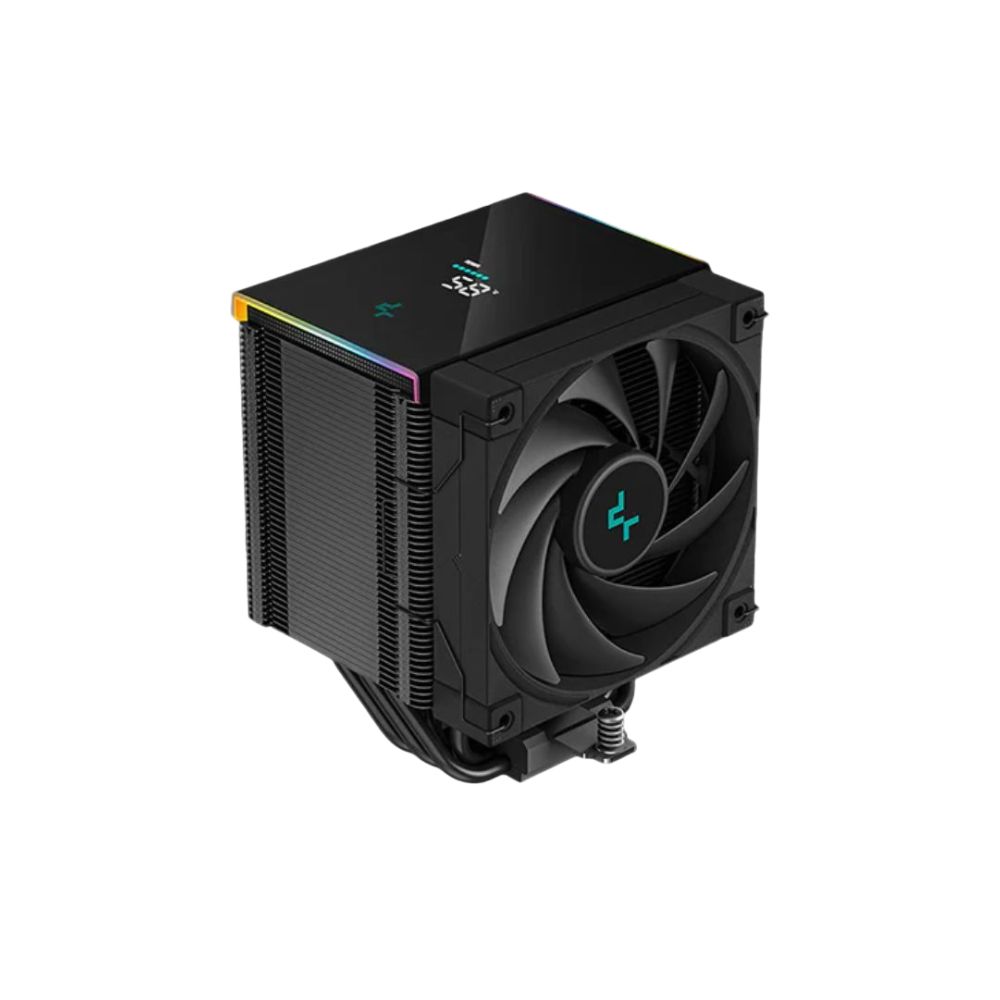

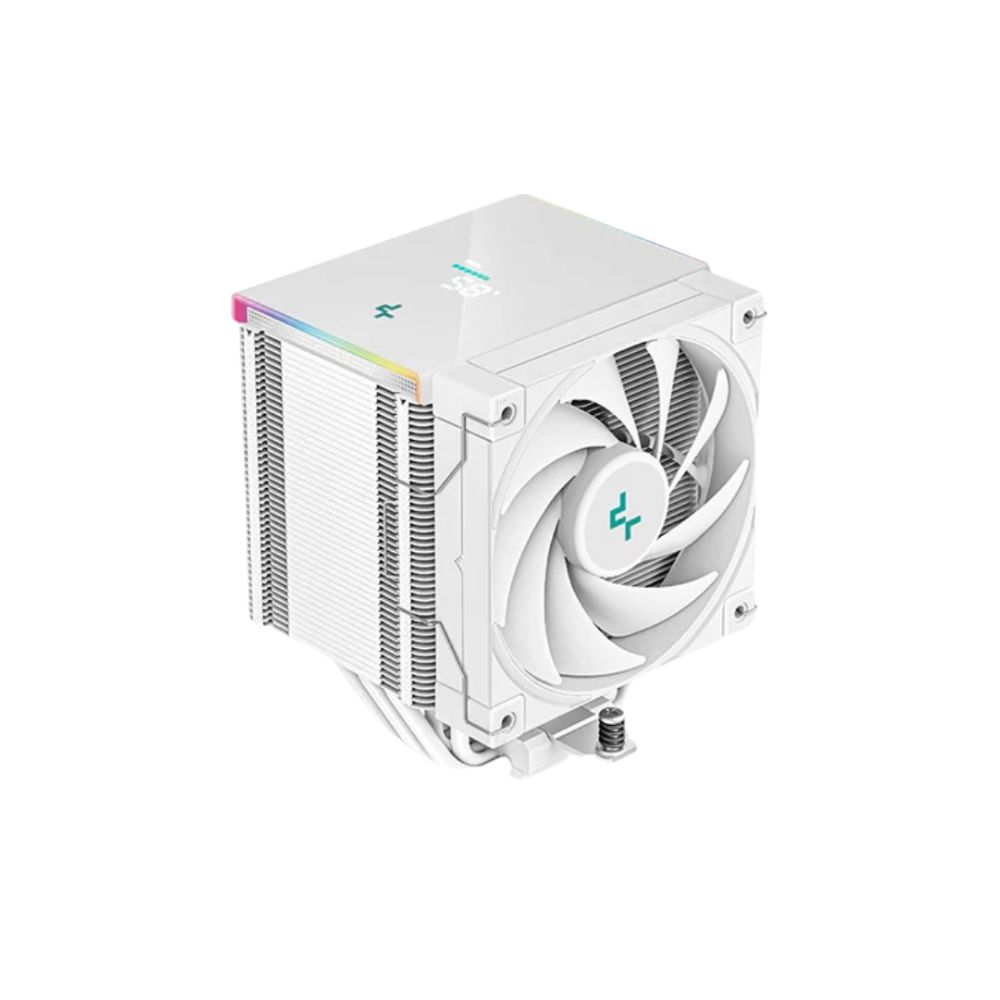

Product Dimensions: 127×117×160 mm(L×W×H)
Heatsink Dimensions: 127×92×156 mm(L×W×H)
Net Weight: 1291 g
Heatpipe: 6 mm×5 pcs

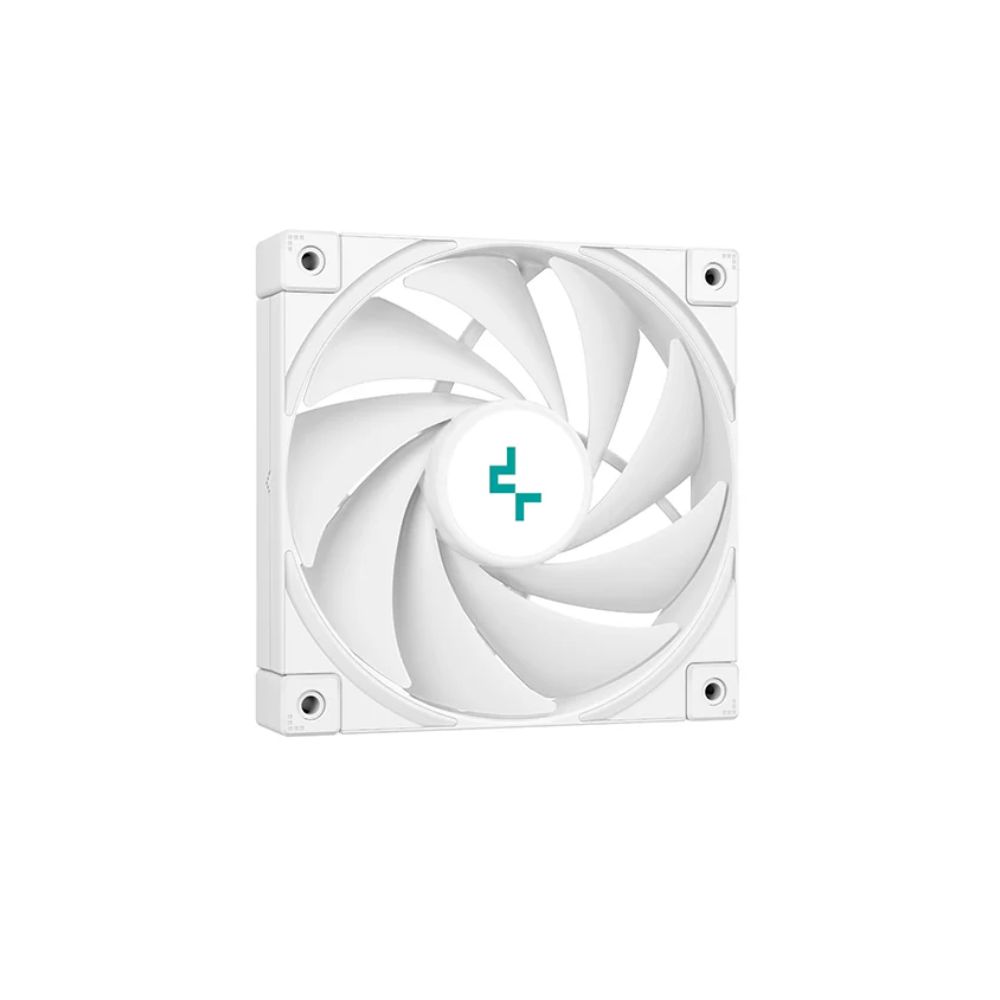

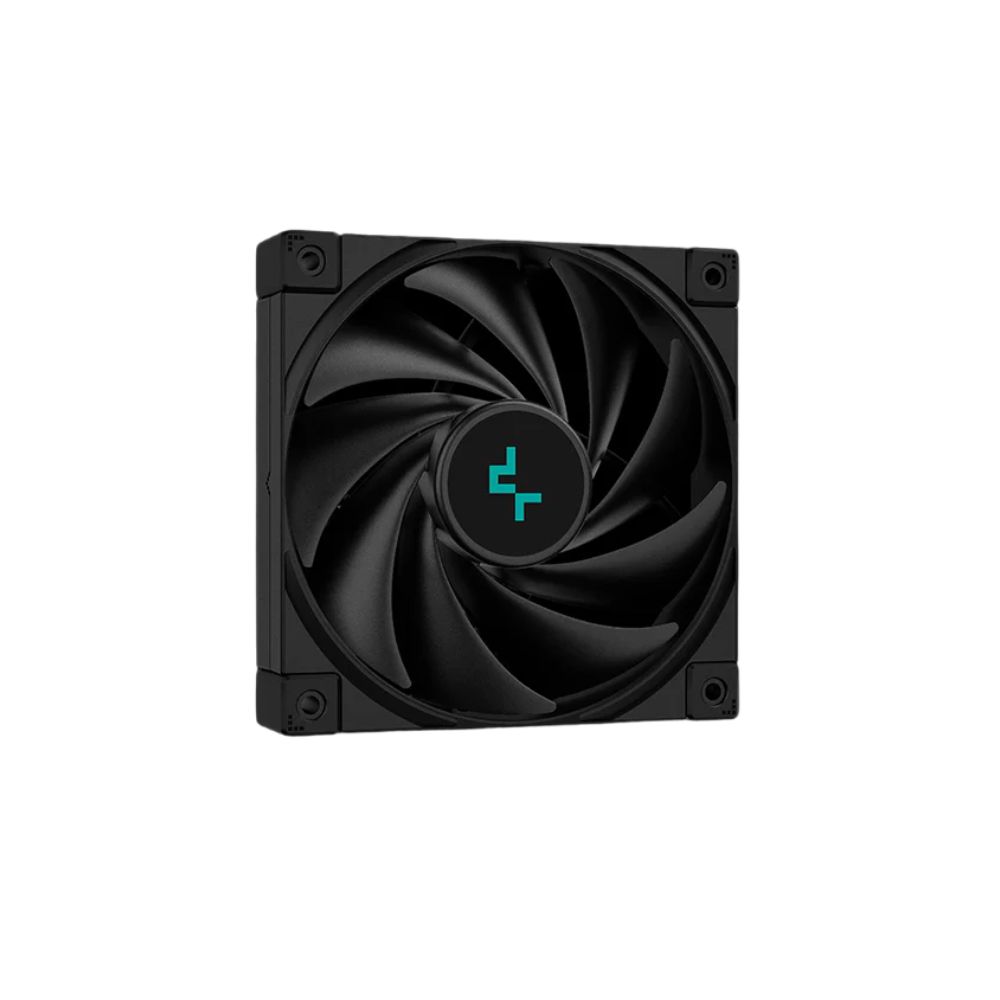

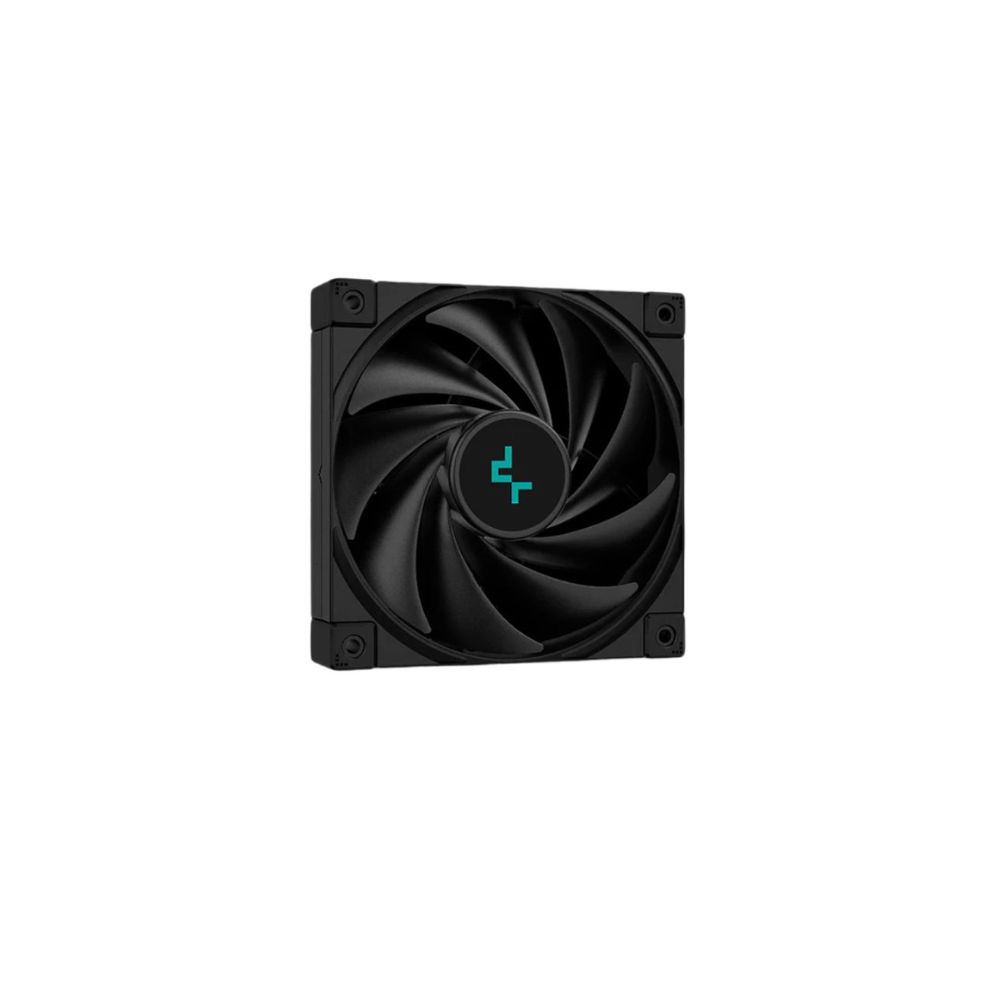

Fan Dimensions: 120×120×25 mm(L×W×H)
Fan Speed: 500~1850 RPM±10%
Fan Airflow: 68.99 CFM
Fan Air Pressure: 2.19 mmAq
Fan Noise: ≤28 dB(A)
Fan Speed (with LSP): 500~1550 RPM±10%
Fan Airflow (with LSP): 52.24 CFM
Fan Air Pressure (with LSP): 1.2 mmAq
Fan Noise (with LSP): ≤25.9 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current0.12 A
Fan Power Consumption: 1.44 W
LED Type: Addressable RGB LED
LED Connector: 3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage: 5 VDC
LED Power Consumption: 4.5 W
