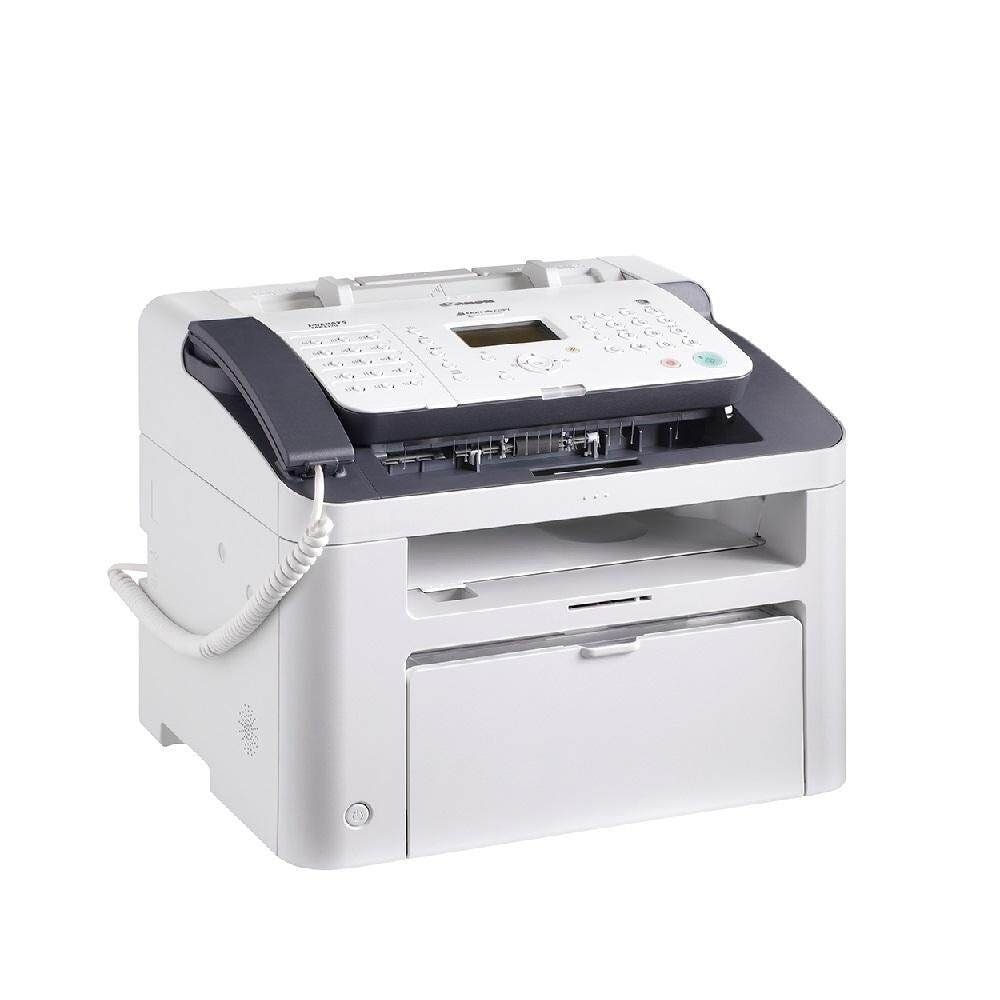

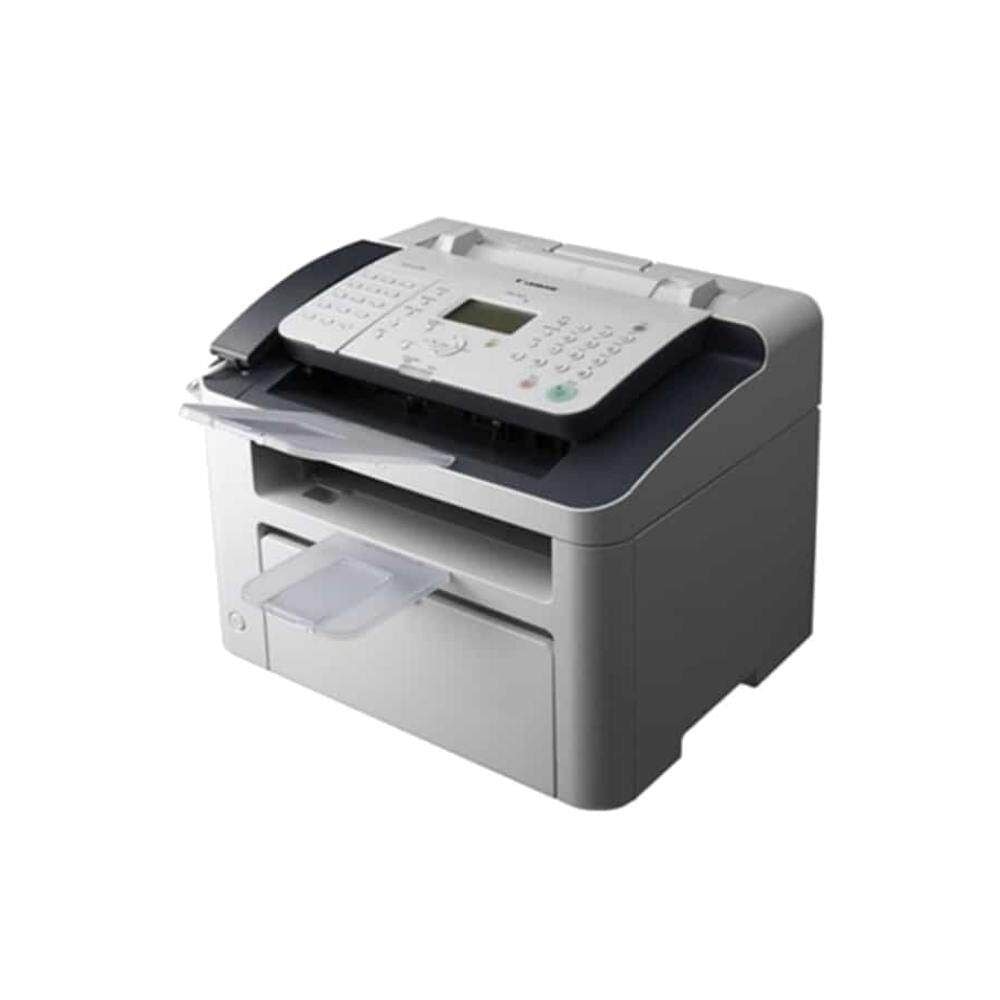

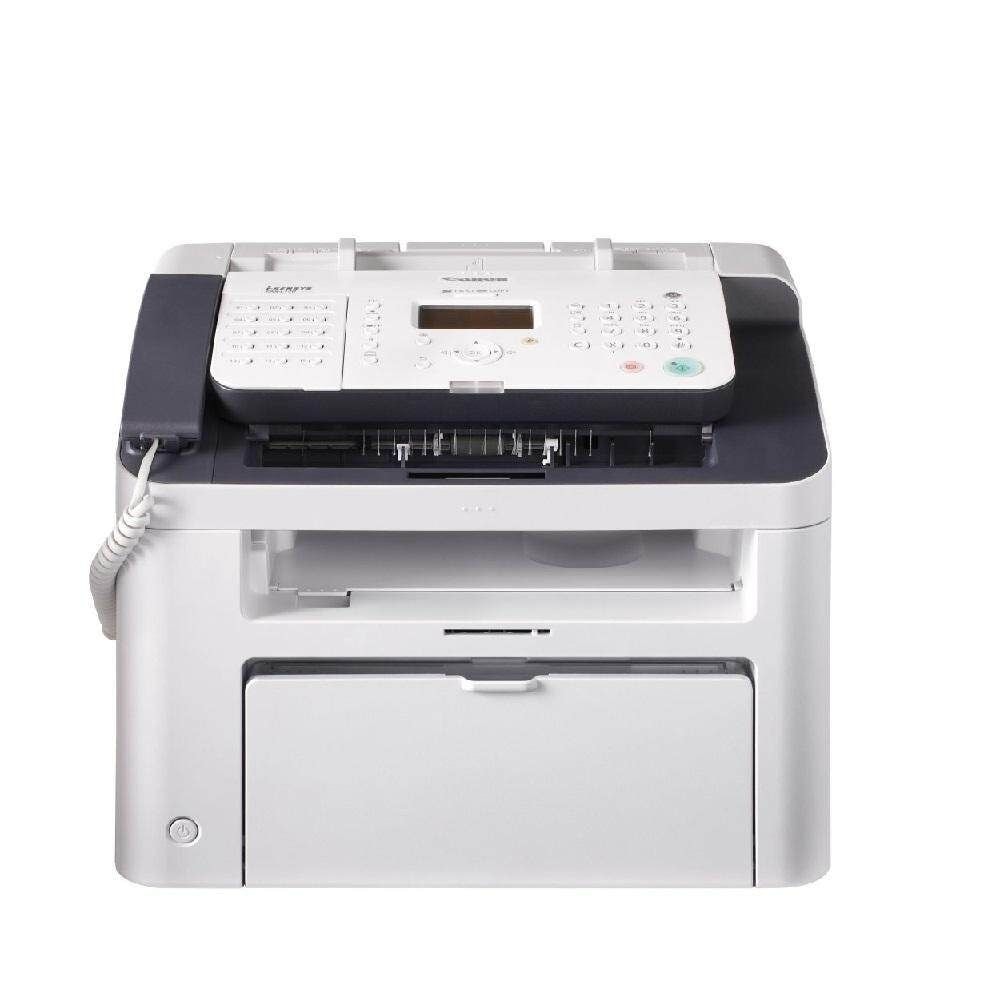

Canon L170 Mono Laser Office Fax Printer
Canon L170 Mono Laser Printer with Fax Function
19ppm(B)/1200X600dpi/CT-328(2,100pages)/Fax memory up to 512 pages
Canon’sproprietaryOn-DemandFixing technology transfers heat directly to the ceramic heating element, reducing warm-up time to the bare minimum and enabling a quick first print.
The FAX-L170 features a compact profile with a remarkably small footprint, helping to reduce desktop clutter.
The fax machine can also be hooked up via USB to a PC or Mac to function as a speedy 18ppm (A4) printer.
The accompanying handset kit is flushed with the top surface of the device body, adding to device compactness.
A 5-line LCD display aids in device setup and also makes menu settings easier to read than ever before.
The FAX-L170 uses the all-in-one tonercartridge328 integrating the photosensitive drum, cleaning unit, and toner reservoir in one compact package, saving costs and making toner replacements easy.
| Printing Method | Monochrome Laser | |
| Print Speed (A4 / Letter) | 18 / 19ppm | |
| Print Resolution | Up to 600 x 600dpi 1200 (equivalent) x 600dpi | |
| Warm-up Time (From Power On) | 14secs. or less | |
| First Printout Time (FPOT) | Black: | Approx. 7.8secs. (A4), 7.7secs. (LTR) |
| Recovery Time (From Sleep Mode) | Approx. 3.5secs. | |
| Print Language / Emulation | UFR II LT | |
| Print Margins | Top: 5mm, bottom: 6mm, left: 5mm, right: 5mm (Other sizes than Envelope) 10mm - top, bottom, left and right (Envelope) | |
| Print Features | Watermark, Page composer, Toner saver | |
| Copy | ||
| Copy Speed | LTR: | 12.4cpm (copies per minute) |
| A4: | 11.8cpm (copies per minute) | |
| Copy Resolution | 600 x 600dpi | |
| First Copy Time (FCOT) | Black: | Approx. 22.3secs. (A4), 21.3secs. (LTR) |
| Maximum Number of Copies | Up to 99 copies | |
| Reduce / Enlargement | 50 - 200% in 1% increments | |
| Copy Features | Density adjustment, Toner saver | |
| Fax | ||
| Modem Speed | Up to 33.6Kbps | |
| Fax Resolution | Up to 200 x 400dpi | |
| Compression Modes | MH, MR, MMR | |
| Memory Capacity*1 | Up to 512 pages | |
| One-Touch Dial | 30 dials | |
| Speed Dial (One Touch + Coded dials) | Up to 130 dials | |
| Group Dials / Destinations | Max. 129 dials / Max. 129 destinations | |
| Sequential Broadcast | Max. 140 destinations | |
| Receive Mode | Fax only, Manual, Answering, Fax / Tel Auto switch | |
| Memory Backup | Yes, 5 minutes | |
| FAX Features | Fax Forwarding, Dual Access, Remote Reception, PC Fax (TX only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports | |
| Paper Handling | ||
| Auto Document Feeder | 30 sheets (80g/m2or less) | |
| Available Paper Size for ADF | A4, B5, A5, B6, Letter, Legal, Statement Min. 127 x 139.7mm to Max. 216 x 356mm | |
| Paper Input | Plain Paper (60 - 80g/m2): | 150-sheet cassette |
| Paper Output | 100 sheets (face down) | |
| Paper Sizes | A4, B5, A5, LGL, LTR, STMT, EXE, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, FLS, 16K, Postcard, Postcard without folding line, Tetrahedral Postcard | |
| Envelope: | COM10, Monarch, C5, DL, Custom (Min. 76.2 x 127mm to Max. 216 x 356mm) | |
| Paper Types | Plain, Heavy, Recycled, Transparency, Label, Envelope | |
| Paper Weight | 60 to 163g/m2 | |
| Connectivity and Software | ||
| Standard Interface(s) | USB 2.0 High Speed | |
| OS Compatibility | Windows 7 (32 / 64 bits*2), Windows Vista (32 / 64 bits*2), Windows XP (32 / 64 bits*2), Windows 2000 Mac®OS X 10.4.9 & up*2, Linux*3 | |
| Software Included | Printer driver, Fax driver | |
| General Specification | ||
| CPU | Canon Custom Processor 133MHz | |
| Memory | 64MB (Max.) | |
| LCD Display | 5-line B/W LCD | |
| Dimensions (W x D x H) | 372 x 303 x 303mm (cassette closed) 372 x 400 x 303mm (cassette opened) | |
| Weight | 8.2kg (with cartridge) 8.8kg (without cartridge) | |
| Power Consumption | Max.: | 1020W or less |
| During Operation: | Approx. 400W (in copying) | |
| During Standby: | Approx. 10W | |
| During Sleep: | Approx. 1.5W | |
| TEC (Typical Electricity Consumption) | 0.6 kWh/W | |
| Noise Levels | Sound pressure level (Bystander's position): | 53dB in B/W printing (reference value) |
| Sound power level: | 6.5B or less in B/W printing | |
| Sound pressure level (Bystander's position): | Inaudible*4(reference value) | |
| Sound power level: | 4.3B or less | |
| Operating Environment | Temperature: | 50 to 86°F (10 to 30°C) |
| Humidity: | 20% to 80% RH (no condensation) | |
| Power Requirements | AC 220 to 240V: | 50 / 60Hz |
| Toner Cartridge*5 | Cartridge 328: | 2,100 pages |
| Bundled cartridge: | 1,000 pages | |
| Monthly Duty Cycle*6 | Up to 8,000 pages | |
| Brand | Canon |
|---|---|
| Category | Home & Office Supplies > Printer |
| Product Condition | New |
