80PLUS GOLD Certified

Intel Form Factor

ATX12V

ATX 3.0

Yes

Dimensions

180 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

22A22A70.8A 0.3A 3A

Combined Load

120W 120W 849.6W 3.6W 15W

Total Output

850W

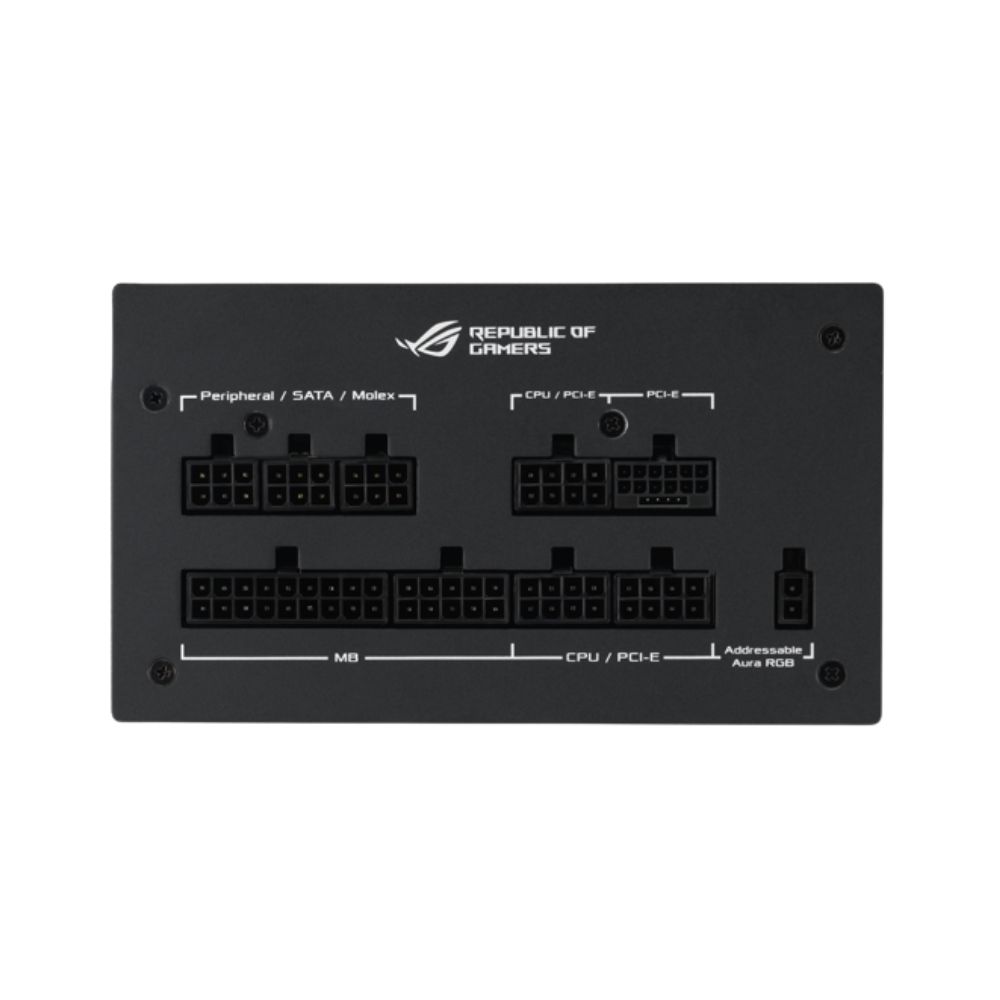

Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1

PCI-E 8-pin x 3

SATA x 5

PERIPHERAL x 4

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (600mm)

CPU Cable x 2 (650mm)

PCI-E Gen 5 16-pin Cable x 1  (700mm)

PCI-E 1-to-1 Cable x 1 (700mm)

PCI-E 1-to-2 Cable x 1 (700mm)

SATA 1-to-2 Cable x 1  (400+120mm)

SATA 1-to-3 Cable x 1  (400+120+120mm)

Peripheral 1-to-4 Cable x 1  (400+150+150+150mm)

Addressable RGB Cable x 1 (800mm)

User Manual x 1

Weight

2.728 kg (single PSU)

AURA SYNC

ARGB

0dB Fan Button

Yes

Cybenetics Noise Level Certification

A++
